Stone Tools

Grinding Brick
Time:2014-09-17 08:48:57 | Source: | Views:1461
 Details

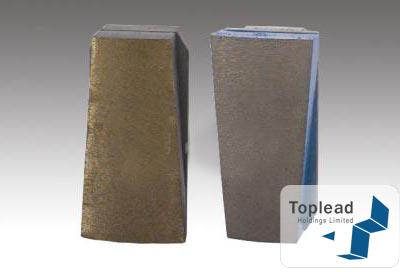

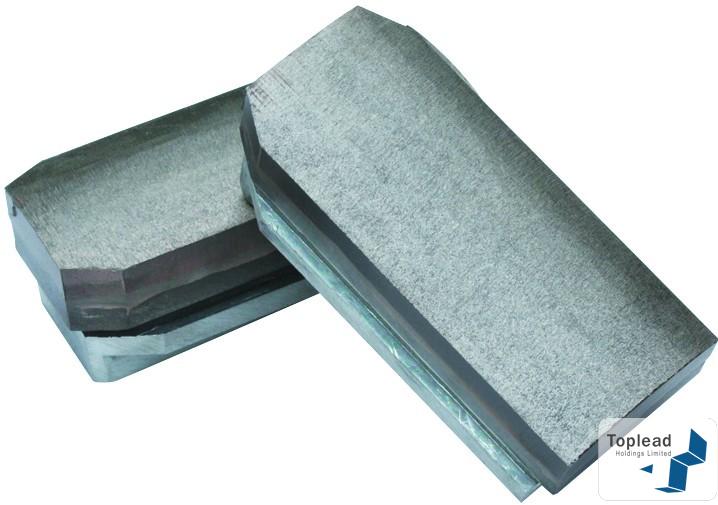

Grinding Brick:Diamond grinding brick adopts diamond chips as grinding granular that was sinterised with the bond made of different metal or metal compound powder by high termperature. Its structure are reasonable that the grinding granulars and the bond are combined firmly and not easy to fall off; long working life; it is applicable in various hard materils, like marble, granite and Terrazzo etc.;It improves processing precision, especially while it is applied in Continuous Automatic Granite Polishing Machine, with features of high sharpness, high Anti-abrasive and High Cost- efficiency ratio.

Product Advantages:1、Electricity saving: diamond brick can be used to grind stone with less power because of its sharpness. This can reduce the stress of grind head, thereby reduce machine' abrasion and stone's dilapidation. Also it can be used for processing thin panel.

2、High efficiency:Its super high sharpness and anti-abrasive stably improve transmission speed of convey belt and improve the production efficiency.

3、High luminosity: Diamond brick it can bring 10 degree more in stone high luminosity. Also its homogenized diamond grit reduced the possibility for stone surface stroke and luminosity instability.

4、High quality: Our high technology,computerized production equipment and strict quality control that guarantee our high quality product supply.

1

2

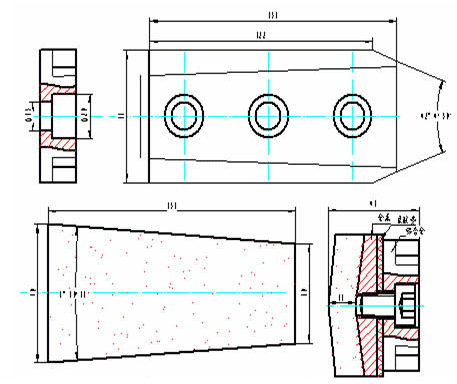

1、Ladder Shape Grinding Brick:140X(13+2) regard as 140X15
INDEX WATER GRIT NUMBER COLOR BOND TYPE LONGEVITY m2
1 lots 30/40   metal 9000-10000
2 40/50   10000-13000
3 50/60   13000-17000
4 70/80   17000-22000
5 80/100   24000-29000
6 100/120   32000-37000
7 140/200   37000-40000
8 300   Resin+Grainding granular 20000
9 400   Resin+Grainding granular 22000
10 little 500   resin 25000
11 less 800   27000
12 less 1500   30000
13 less 3000   20000
14 wet Buff   20000
15 Buff   20000
16 Buff   20000

 3

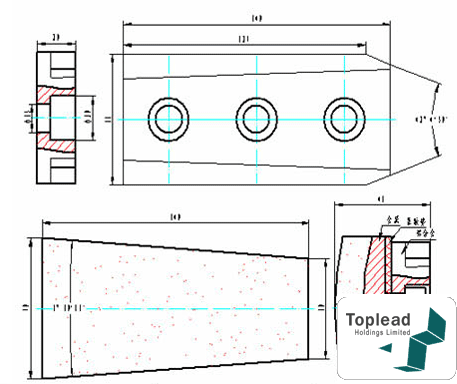

1、Trapezia Shape Grinding Brick:135X(13+2)regard as 135X15
INDEX WATER GRIT NUMBER COLOR BOND TYPE LONGEVITY m2
1 lots 30/40   metal 8500-9500
2 40/50   9500-12500
3 50/60   12500-16500
4 70/80   16500-21500
5 80/100   23000-28000
6 100/120   31000-36000
7 140/200   36000-39000
8 300   Resin+Grainding granular 19000
9 400   Resin+Grainding granular 21000
10 little 500   resin 24000
11 less 800   26000
12 less 1500   29000
13 less 3000   19000
14 wet Buff   19000
15 Buff   19000
16 Buff   19000

4

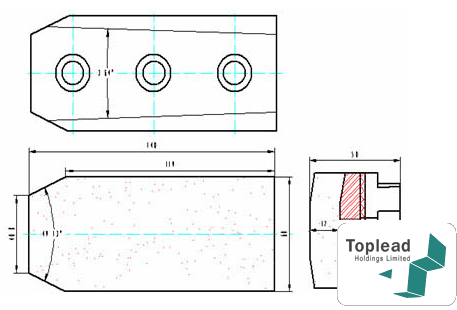

1、Rectangle Shape Grinding Brick:140X(15+2) regard as 140X17
INDEX WATER GRIT NUMBER COLOR BOND TYPE LONGEVITY m2
1 lots 30/40   metal 9000-10000
2 40/50   10000-13000
3 50/60   13000-17000
4 70/80   17000-22000
5 80/100   24000-29000
6 100/120   32000-37000
7 140/200   37000-40000
8 300   Resin+Grainding granular 20000
9 400   Resin+Grainding granular 22000
10 little 500   resin 25000
11 less 800   27000
12 less 1500   30000
13 less 3000   20000
14 wet Buff   20000
15 Buff   20000
16 Buff   20000
