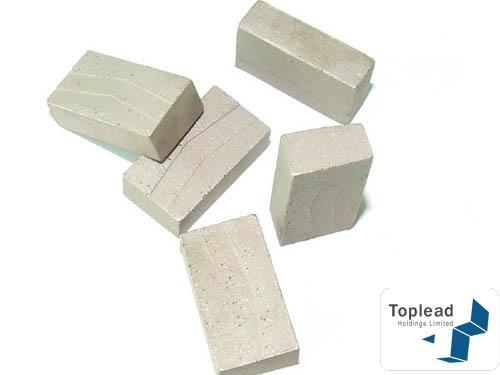

Brief introduction: High Frequency welded,for granite,marble,sandstone,limestone,slate,basalt and so on,used on large size gantry cutting machine and single column cutting machine.
Characteristics of products: fast cutting speed, good life span, stable performance



Diameter (mm )	W1	W2	H	L	Number
900	6.9	6.1	13	24	64
1000	6.9	6.1	13	24	70
1100	7.4	6.6	13	24	74
1200	7.4	6.6	13	24	80
1300	8.4	7.6	13	24	88
1400	8.4	7.6	13	24	92
1500	9.2	8.4	13	24	100
1600	9.2	8.4	13	24	108
1700	9.2	8.4	13	24	112
1800	9.9	9.1	13	24	120
2000	11.0	10.0	15	24	128
2200	11.0	10.0	15	24	132
2500	12.5	11.5	20	24	140
2700	12.5	11.5	20	24	140
3000	12.5	11.5	20	24	160
3500	13.0	12.0	20	24	180



Please forward us the following technical data when ordering the above products.
Diameter:		Specification of Segment		Order Amount
Diameter of Inner hole		Number of Segments in Each Blade		Delivery Date:
Cutting Material



Please forward us the following technical data if it is available for you!
Turning Speed of Blade(rpm/min)		Linear Speed(m/min)		Motor Power(KW)
Cutting Depth(m/min)		Cutting Depth(mm)		Cooling Water Comsuption(L/min)
Main Characteristic of Cutting Material
